Home Wood Machinery Dept. CASADEI PS52
CASADEI PF52
CASADEI PF52 1,00 ر.س
Back to products
CASADEI AXO 300
CASADEI AXO 300 1,00 ر.س

CASADEI PS52

1,00 ر.س

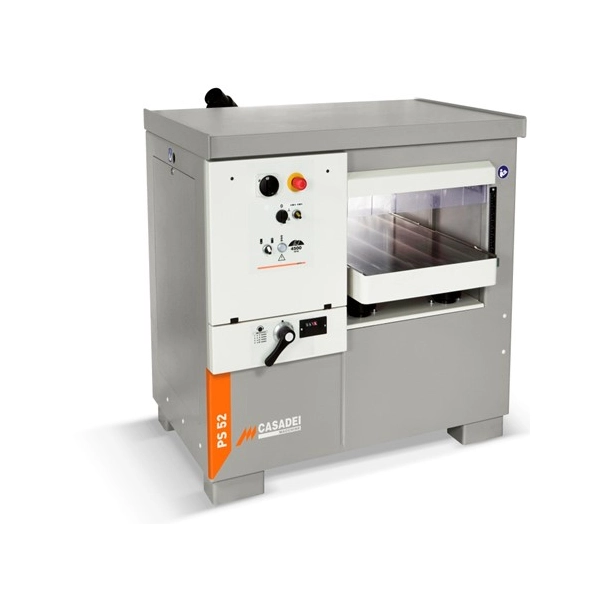

THICKNESS PLANER

Machine Model: CASADEI PS52
Origin: Italy





Contact Us
Request A Quote
Share:
  • Description
  • Technical Features
Description

STANDARD EQUIPMENT

  • Ribbed cast iron worktable with vertical sliding by means of 4 steel screws.
  • Table lifting with 2 speeds and micrometric sliding.
  • Cutterblock with knife-setting device.
  • Readout of working height with decimal control of the quota.
  • Front roller in helical steel.
  • Rear rubber-coated steel roller.
  • Infeed and outfeed barrier.
  • Main switch.
  • Overload switch protection.
  • Auxiliary low voltage circuit (110 Volt).
  • Exhaust hood.
  • Manual star-delta start of main motor.
Technical Features
TECHNICAL DATA
Working width 520 mm
Working height (min./max.) 3,5/250 mm
Worktable dimensions 530x900 mm
Max. stock removal 8 mm
Min. working length 220 mm
Min. working width 10 mm
Cutterblock rotation speed 4500 rpm
Cutterblock diameter 120 mm
N. 4 knives 35x3x520 mm
No. 4 feed speeds of the workpiece 5-8-12-18 m/min
Diameter of dust extraction outlet 150 mm
Motor power (S6), With Automatic Star Delta 11 kW 15 HP 60 Hz
