Intuitive design & user-interface

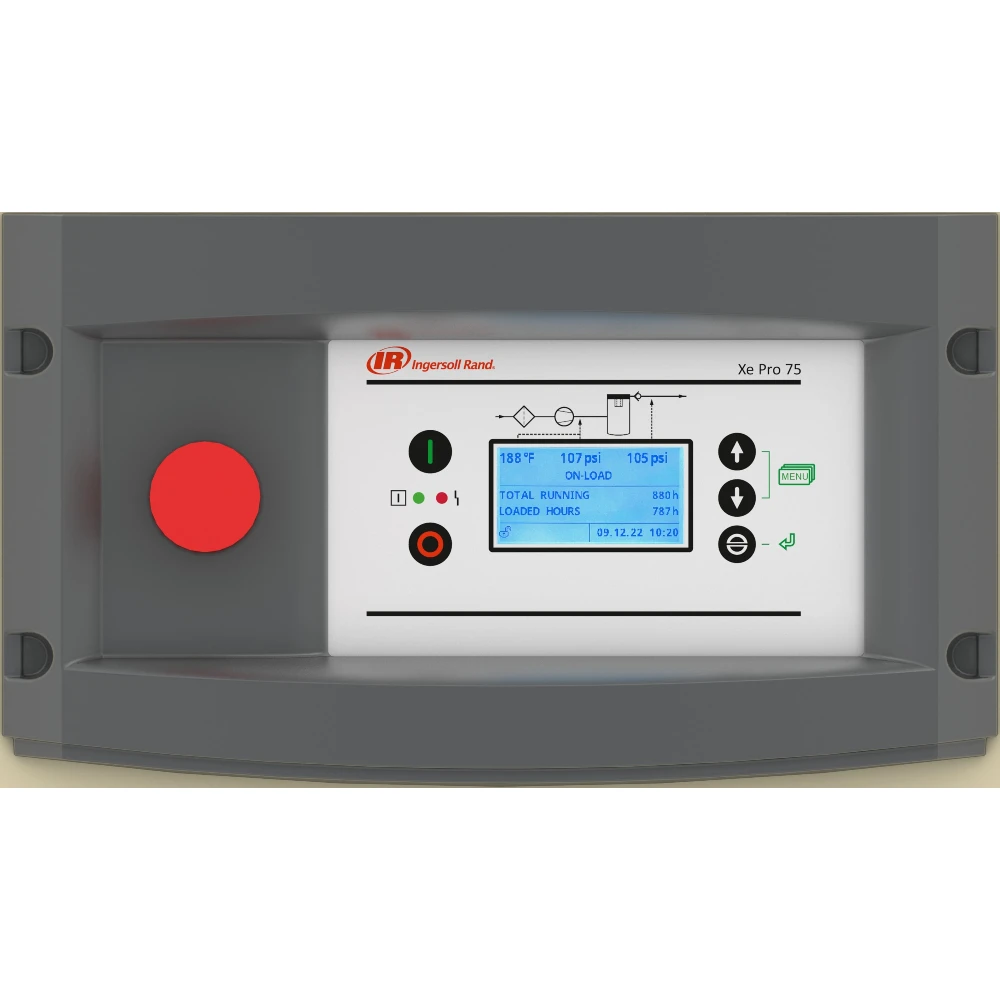

- 2.8", modern graphic display with three lines of text allows the compressor status to be displayed constantly even when navigating menus, or during set-up adjustments
- Simplified set-up through large navigation buttons, intuitive navigation control and an easy-to-use user interface
- Can be ergonomically positioned on top or in front of the compressor
Improved connectivity and advanced diagnostics and analytics
- Stay connected with the Xe-Pro 75 using the-easy-to-use display or via remote access from a web browser or smartphone
- Optional micro-SD-Card functionality for alarm- & data logging
- Five programmable inputs along with multiple optional inputs and output options available.
- Real time clock allows enhanced features to operate without the need for additional components.
- A timer control allows the possibility to set the compressor to start or stop at set times – this is particularly helpful in system pressurization prior to production
- Second pressure setting allows 2 pressures settings for reducing operating costs during a reduced shift or periods of maintenance
- Enhanced error log stores up to 8 faults and the new controller allows for a greater depth of analysis
- Dryer control allows to either start the dryer at the same time as the compressor, or prior to it
- Flash programmable and on-site software updates
Integrated System Control with remote asset monitoring
- Modbus – RTU Interface allows the controller to communicate with external interfaces via the RS485 interface
- Sequencer option allows a master Xe-Pro 75 to control up to 3 additional units of similar size
- Optional connectivity through proprietary Ingersoll Rand IIoT solution - Helix™ Connected Platform improves uptime
Benefit from latest technology with cost-effective retrofits
- Ordering the new Xe-Pro 75 controller with our retrofit kit allows for easy upgrades with minimal investment
- Maximize performance and throughput by seamlessly upgrading to the latest controller technology with enhanced features
- Improve energy efficiency and reduce carbon footprint
